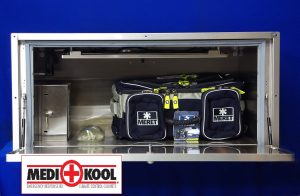

MEDI-KOOL 5.1 SS
This large cabinet is 5.1 cubic feet of heating or cooling space. Hence how we got the name!
Compressor can be located to the rear, right ,left or top of the unit.
Door can be hinged top or bottom.
All Medi-Kool units come with our standard lock & key.
Each unit can range in temperature from 32°F – 110°F with our standard control board.
MEDI-KOOL 5.1 SS SPECIFICATIONS
RUNNING AMPERAGE
| Startup = 10 amps |
| Running = 5.8 amps |
DIMENSIONS
| Internal: 33 7/8″ Wide x 19 3/4″ Deep x 13 1/4″ High |
| Cutout Dimensions : 38 1/2″ Wide x 22 1/2″ Deep x 18″ High |
Dimensions above do not include compressor
Compressor Dimensions:
13″ Wide x 7″ Deep x 7 1/2″ High
Please be sure to include compressor dimensions when measuring for install.
Important Information
All units come with a 1.25″ Flange surrounding the cabinet. This flange is NOT included in the Cutout Dimensions.
Please cut the hole according to the Cutout Dimensions, and remember a 1.25″ Flange surrounds the entire cabinet to mount cabinet into the wall.
