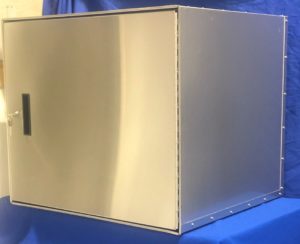

MEDI-KOOL 7.8 RS1 SS
The Medi-Kool 7.8 RS1 SS was designed for the right-side 1st (RS1) compartment for most fire pumper trucks with the need for floor mounting applications in mind. It can accommodate a wifi designed narcotics strong box along with a mid-size or large ALS bag. Compressor can be mounted to the left, right or top. Door can be hinged to the right or left.
All Medi-Kool units come with our standard lock & key.
Each unit can range in temperature from 32°F – 110°F with our standard control board.
MEDI-KOOL 7.8 RS1 SS SPECIFICATIONS
RUNNING AMPERAGE
| Startup= 10 amps |
| Running = 5.8 amps |
DIMENSIONS
| Internal: Width= 25.750” Depth= 22.50” Height= 21.750” |
| External: Width= 28.50” Depth= 25.625” Height= 24.875” |
Dimensions above do not include compressor
Compressor Dimensions:
13″ Wide x 7″ Deep x 7 1/2″ High
Please be sure to include compressor dimensions when measuring for install.
Important Information
All units come with a 1.25″ Flange surrounding the cabinet. This flange is NOT included in the Cutout Dimensions.
Please cut the hole according to the Cutout Dimensions, and remember a 1.25″ Flange surrounds the entire cabinet to mount cabinet into the wall.
