MEDI-KOOL MICRO V/MICRO DEPTH AVIATION

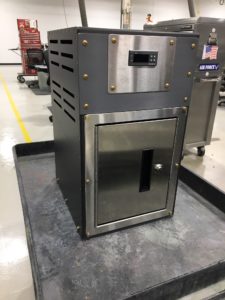

The Medi-Kool Micro V/Micro Depth Aviation design is the perfect combination of reduced weight (30lbs) and small size. This unit includes a compact compressor mounted on the top, dropping the necessary headroom clearance to only 6” above the cut-out dimensions. Door can be hinged right or left.

All Medi-Kool units come with our standard lock & key.
Each unit can range in temperature from 32°F – 110°F with our standard control board.

MEDI-KOOL MICRO V/MICRO DEPTH AVIATION SPECIFICATIONS

RUNNING AMPERAGE

Startup= 15 amps
Running = 5.7 amps

DIMENSIONS

Internal:
Width= 7.50” Depth= 9.50” Height= 8.250”
External:
Width= 10.15” Depth= 12.50” Height= 12.65” (Add only 6.00” for Compressor Assembly Clearance)

Important Information


All
units come with a 1.25″ Flange surrounding the cabinet. This flange is NOT included in the Cutout Dimensions.


Please cut the hole according to the Cutout Dimensions, and remember a 1.25″ Flange surrounds the entire cabinet to mount cabinet into the wall.

DOCUMENTATION

Download any of these documents by clicking on the link!

ENJOY PEACE OF MIND WITH MERMAID WARRANTIES

All Mermaid Marine Air Conditioning Systems (excluding pumps) Medi-Kool (excluding the compressor) and Dehumidifiers carry a 5 year limited warranty. All pumps, Medi-Kool compressors, thermostats, and Remote Refrigeration Units carry a limited 1 year warranty.
