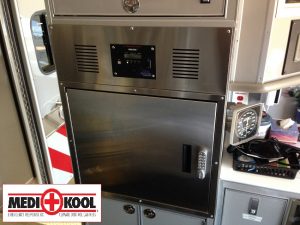

MEDI-KOOL PELICAN SS
The MK Pelican is one of our larger units.
Adjustable shelf included with purchase!
Compressor can be mounted rear, right, left or top.
Door can be hinged right or left.
All Medi-Kool units come with our standard lock & key
Each unit can range in temperature from 32°F – 110°F with our standard control board.
MEDI-KOOL PELICAN SS SPECIFICATIONS
RUNNING AMPERAGE
| Startup = 10 amps |
| Running = 5.8 amps |
DIMENSIONS
| Internal: 26 1/4″ Wide x 17 7/8″ Deep x 20 1/4″ High |
| Cutout Dimensions : 29.025″ Wide x 20.625″ Deep x 25.025″ High |
Dimensions above do not include compressor
Compressor Dimensions:
13″ Wide x 7″ Deep x 7 1/2″ High
Please be sure to include compressor dimensions when measuring for install.
Important Information
All units come with a 1.25″ Flange surrounding the cabinet. This flange is NOT included in the Cutout Dimensions.
Please cut the hole according to the Cutout Dimensions, and remember a 1.25″ Flange surrounds the entire cabinet to mount cabinet into the wall.
DOCUMENTATION
Download any of these documents by clicking on the link!
ENJOY PEACE OF MIND WITH MERMAID WARRANTIES
All Mermaid Marine Air Conditioning Systems (excluding pumps) Medi-Kool (excluding the compressor) and Dehumidifiers carry a 5 year limited warranty. All pumps, Medi-Kool compressors, thermostats, and Remote Refrigeration Units carry a limited 1 year warranty.
